Seedy work! The what, why and how of archaeobotanical analysis

Nikolah Gilligan
nikolahg [at] gmail.com

This article is the first of two by the author relating to archaeobotanical assemblages. They aim to introduce the reader to the processes involved in archaeobotanical sampling, analysis and application of results. This first paper deals with the methods involved in sampling, retrieval and identification. The second paper will present case studies in which archaeobotanical analysis has been applied in order to inform upon any social, cultural and economic practices which may have left their trace in the environmental remains after the abandonment or destruction of the site.

The what

Archaeobotany is based on the identification, scientific analysis and interpretation of plant remains. These macrofossils are preserved by charring, waterlogging, mineralisation and desiccation. The latter tends not to apply to archaeobotanical assemblages in Ireland or the United Kingdom! In my experience, much of the material in this part of the world is charred – in particular that retrieved from prehistoric sites, although waterlogged material is also quite common. Charring is the result of the plant remains becoming carbonised under oxygen-poor conditions as a result of their interaction with fire; this leaves behind carbon skeletons of the seeds (Moffett 2009, 41).

Click to enlarge

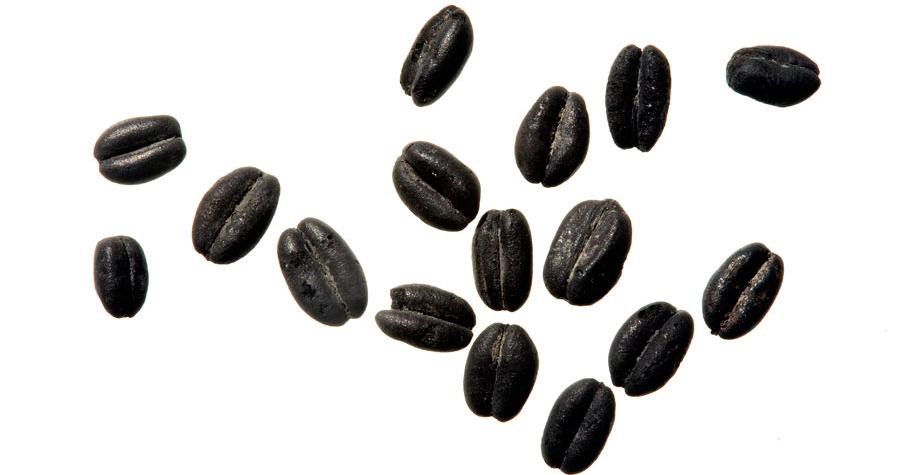

Figure 1: Charred wheat seeds (Reproduced with kind permission of the Colonial Williamsburg Foundation)

Figure 1: Charred wheat seeds (Reproduced with kind permission of the Colonial Williamsburg Foundation)

Typically, because they are the result of people’s interaction with cereal crops, chaff and weed seeds, these are the most common components of an archaeobotanical assemblage (Knörzer 1971; as cited in Fuller et al. in press). The most common ‘modes of entry’ (van der Veen 2007) of these remains into the archaeological record include food processing, preparation, consumption and storage as well as through fuels, animal dung, building materials and ritualistic practices (van der Veen 2007; Matthews 2009).

Primarily, seeds which have been charred are retrieved from drying-kilns, hearths, pits, ditches and floors. Kilns and hearths were often the location of primary activities concerned with cereal processing and it was here that grains, weeds and chaff were sorted, waste was discarded and the cleaned products dried for storage or further processing; such as grinding for flour or malting for ale production. Pits and ditches often indicate secondary deposition, as they tend to contain discarded waste from a kiln or hearth. These latter remains cannot be reliably used to indicate the environment within which they originated; rather they suggest the processes which resulted in their deposition.

The why

The identification of each charred fragment possible and the subsequent assessment of the origin of each context makes it easier to ask questions of the data. This enables any attempt to understand the socio-cultural and economic practices of the settlement or site (van der Veen 1992; van der Veen 2007).

In its infancy, archaeobotanical studies focused on landscape reconstruction through phytosociology, but acknowledged faults with this model are associated with taphonomy and changes in agricultural practices (Hillman 1991; Küster 1991). The impetus towards statistical analysis of taxa frequencies in the 1980s was based upon ethnobotanical studies of pre-industrial farming communities and it led to a deeper understanding of traditional agricultural societies and their methods of harvesting, crop-processing and storage (Hillman 1981; Jones 1987a; Jones1987b).

These activities incorporated a number of steps and it was shown that each step could be tracked in the archaeological record by the relative frequency of grain, weeds and chaff in an assemblage. The steps include: (1) Threshing; (2) Raking; (3) Winnowing to remove light weed seeds and awns, which may be used as fodder later; (4) Coarse sieving to remove weed seeds, unbroken ears and straw fragments; the unbroken ears are re-threshed; (5) Fine sieving to remove small weed seeds and awns; (6) Pounding; (7) Winnowing to remove lemmas and paleas; (8) Coarse sieving to remove spikelet forks and unbroken spikelets, which are re-pounded; (9) Fine sieving to remove glumes bases, awns and small weed seeds; (10) Hand-sorting for removal of grain-sized weeds.

Click to enlarge

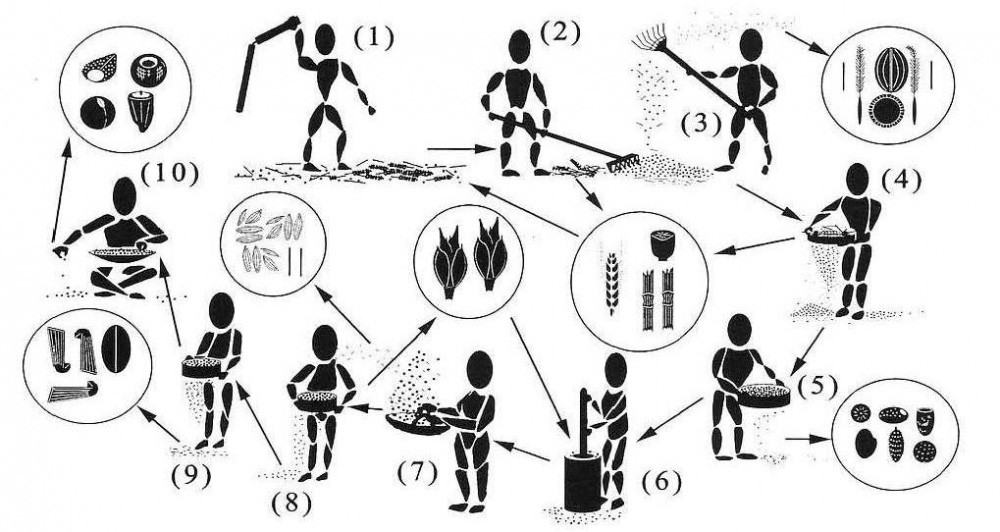

Figure 2: Crop-processing steps and the by-products which form archaeobotanical assemblages (after Stevens 2003)

Figure 2: Crop-processing steps and the by-products which form archaeobotanical assemblages (after Stevens 2003)

By-products of the stages, as well as the resultant clean grain at the end of the process, are those plants parts which are likely to come into contact with fire through fuel stores, parching, routine processing and accidents (van der Veen 1992, 81). By understanding the stages and plotting the assemblage against each stage it should therefore be possible for archaeobotanists to infer how a society organised harvesting and how their crops were stored, as well as to suggest broader societal organisation, scheduling of labour and risk-management strategies. This theory was widely applied by all archaeobotanists in the 1980s and 1990s and has been further reworked by Reddy (1997), Stevens (2003), van der Veen and Jones (2006) and Fuller et al. (in press).

It is generally inferred that surplus clean grain is produced by complex and hierarchical societies for trade (Stevens 2003; Fuller et al. in press). Equally, those sites which show evidence for routine processing may be more domestic in nature. The debate is too detailed to outline here, but it must be remembered that differential preservation and cultural choice, as well as the context of the sample, influence the assemblage.

Other questions about agricultural practices can be asked of the plants within an assemblage. There may be evidence for harvesting methods (Wilkinson and Stevens 2008) when the relative frequencies of the contents have been analysed. Irrigation techniques identified through functional ecology (Bogaard et al. 1998; Charles et al. 2003) and evidence for the cultivation of cash-crops suggest intensification of production, which can be used as evidence for the emergence of hierarchical societies and trade networks (Miller Rosen 1997; Fuller and Stevens 2009).

Archaeobotany can tentatively be used to recreate the plant-based components of diets in the past. While many of the ingredients may not have come into contact with fire, small clues about prehistoric palates can be ascertained (Valamoti 2003). Alterations in preparation practices and place, as well as changes in crop choice, may be visible through very careful analysis of well-preserved assemblages (McCorriston 1995). Many prehistoric foods are silent, but may be suggested through careful analysis of the taxa.

Other themes which can be explored through archaeobotanical assemblages are climate change and land degradation, which are major topics in the Near Eastern Bronze Age (deMenocal 2001) and are thought to have been caused by an interplay of factors such as natural events (Weiss 2001) and expansion of agricultural lands, causing widespread clearance of forests and aridification. Further exploitation of the land, through irrigation and poor water-management may have contributed to the salinisation of the region. Carbon isotope studies of seeds, as well as germination requirements are utilised in studies such as these (Riehl et al. 2008).

The increasing use of animal dung in the Near East as fuel in the Middle Bronze Age as a result of woodland clearance can be detected by the increasing presence of steppe grasses, small legumes, barley and cereal chaff within an assemblage (Miller 1984). In this part of the world, animal management and foddering regimes can also be gauged through spatial analysis of threshing waste and small legumes, which are often fed to herds throughout the winter.

Thus, there are numerous topics which can be examined through archaeobotanical analysis. One crucial point is to understand that the charred remains have been preserved in the archaeological record only as a result of their contact with fire (Miller 1990, 75) and are therefore biased towards the preservation of plants that require fire for processing, preparation or are accidentally charred.

Inevitably, most assemblages have been built up during a series of activities and as such are secondary in nature (Schiffer 1976; Hubbard and Clapham 1992). It is important that ‘modes of entry’ (van der Veen 2007) are identified so that the potential of the data can be assessed (Hillman 1981; Jones 1987b; van der Veen 1992).

The how

Soil samples are collected from features on-site; the archaeologists involved in the sampling may have consulted an archaeobotanist or environmental archaeologist in order to devise a relevant sampling strategy. Campbell et al. (2011) have produced a very useful document on behalf of English Heritage outlining the methods for gathering and processing environmental samples, and the Institute of Archaeologists of Ireland (Monk et al. 2007) have also produced similar guidelines. Alternatively, the post-excavation work may reveal that particular features are important enough to be processed for archaeobotanical remains.

Typically, the samples are stored in plastic sample bags or plastic buckets; the latter are more durable, easier to store and reusable. The soil is then processed according to its preservation method; typically flotation is carried out for charred assemblages from dryland sites. This comprises the use of a flotation machine or a simple bucket method.

The principle of flotation is that the light environmental remains, such as charred seeds and charcoal, will float to the top of the soaked samples. The macrofossils are then poured off the top through geological sieves typically measuring 2mm, 1mm, 0.50mm and 0.25mm. The retent, which are the heavy particles that stay at the bottom of the soaked sample, is also poured through the sieves.

All fractions are left to dry and are scanned for environmental material under a microscope at a magnification between x7 and x40. The charred seeds are removed from the sample and are identified. Initial identifications can be made using a variety of literary and digital sources, including Stace (1997), Jacomet et al. (2006), Van Zeist and Bakker-Heeres (1985) and Cappers et al. (2006). Further in-depth identification is carried out by comparisons with physical reference collections.

The results of identification are presented in a table; with all plant parts listed in the table and noted with their English and Latin names. The table is generally organised in terms of nomenclature of species (examples in Stace 1997). An example of a table with few archaeobotanical fragments is visible below.

The fragments are counted and listed in the table accordingly. Where possible, identifications are made to genus and species. However, where these identifications prove impossible, the remains are listed as ‘[Family] sp.’. In some cases, although much of the definitive identification criteria are missing, remains are recognisable to the analyst and are denoted by the letters ‘cf’.

Click to enlarge

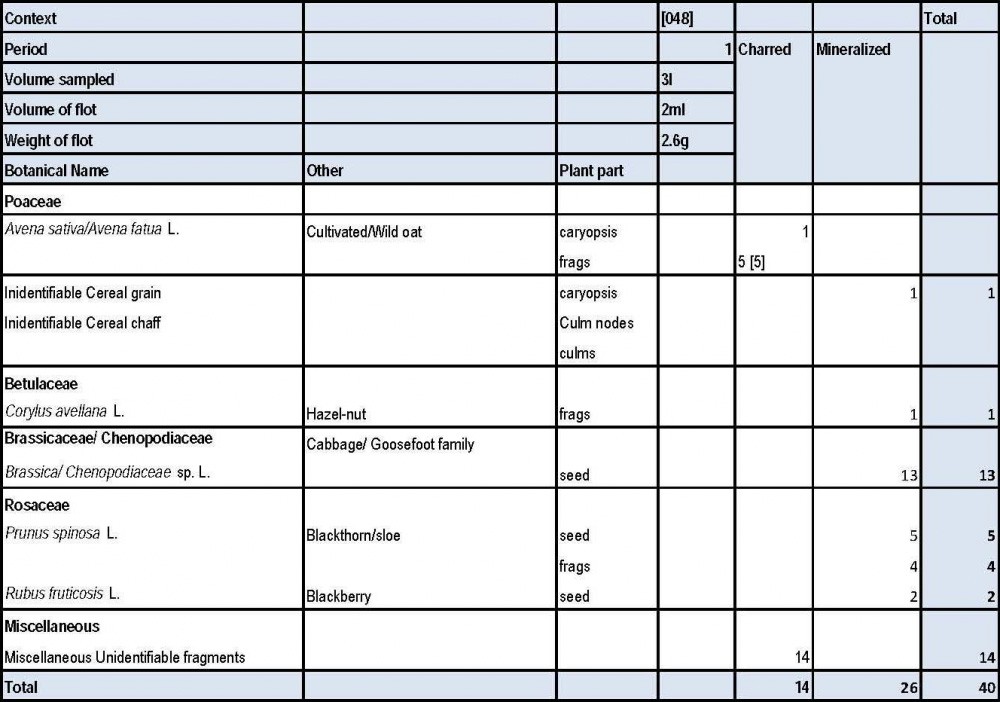

Figure 3: A typical table of archaeobotanical finds (Image Copyright: Nikolah Gilligan)

Figure 3: A typical table of archaeobotanical finds (Image Copyright: Nikolah Gilligan)

In order to assess the number of cereals present, either the embryos or the apices of fragmentary grains are counted where possible; it must be assessed which end is more suitable prior to counting in order to avoid double-counting of grains. Alternatively, an intact cereal caryopsis can be weighed and an estimate is then made of the number of whole grains which may originally have been present. These estimated figures are shown within square brackets in a table.

Tables also include information about the samples, including the phase they were associated with, the size of the sample and the flot, as well as species count. Basic statistical analyses are often also included, such as ubiquity values and the relative frequencies of taxa. The former is useful for quantifying the presence and absence of each taxon in the samples and takes into account differential preservation of plant parts (Hastorf 1999, 59). Relative frequency is a useful tool for analysing patterns and relationships in the data, though differential preservation may bias the results. By using both methods to complement each other, the limitations of either are lessened.

Additionally, the density per litre of each sample can be calculated by dividing the amount of specimens noted per sample by the volume of the sample. This can be useful in assessing whether the assemblage was formed by a gradual build-up, such as waste deposition, or was the result of a single episode, like an accidental conflagration.

Once identification and quantification has been completed by the archaeobotanist, the information is then collated into a suitable format to allow questions to be asked of the data. At this stage it is a good idea for the archaeobotanist to liaise with the archaeologist and other environmental specialists who may be involved in the post-excavation process. This will allow informed questions to be asked of the data and a multi-faceted report to be produced.

Conclusion

This article seeks to introduce the reader to the process of sampling environmental remains for the purpose of archaeobotanical identification and analysis; the aim of which is to extract any possible information about past activities on the site from any identifiable plant remains which may be present. The second article by this author will present case studies where the results of archaeobotanical analysis have been useful in building a better picture about activities on the site, including crop choice, processing and storage.

Bibliography

  • Bogaard, A., Hodgson, J.G., Wilson, P.J. and Band, S.R. (1998) ‘An index of weed size for assessing the soil productivity of ancient crop fields’. Vegetation History and Archaeobotany. 7 (1). 17-22
  • Campbell, G., Moffett, L. and Straker, V. (2011) Environmental Archaeology: A Guide to the Theory and Practice of Methods, from Sampling and Recovery to Post-Excavation (2nd Ed.). Swindon: English Heritage
  • Cappers, R.T.J., Bekker, R.M. and Jans, J.E.A. (2006) Digital Seed Atlas of the Netherlands. Groningen Archaeological Studies. 4. Eelde: Barkhuis
  • Charles, M., Hoppé, C., Jones, G., Bogaard, A. and Hodgson, J.G. (2003) 'Using weed functional attributes for the identification of irrigation regimes in Jordan'. Journal of Archaeological Science. 30 (11). 1,429–1,441
  • deMenocal, P.B. (2001) 'Cultural responses to climate change during the Late Holocene'. Science. 292 (5517). 667-673
  • Fuller, D.Q and Stevens, C.J. (2009) 'Agriculture and the Development of Complex Societies', in A.S. Fairbairn and E. Weiss (eds). From Foragers to Farmers: Papers in Honour of Gordon C. Hillman. Oxford: Oxbow Books
  • Fuller, D.Q., Stevens, C.J. and McClatchie, M. (in press) 'Routine Activities, Tertiary Refuse and Labor Organization: Social Inferences from Everyday Archaeobotany', in M. Madella and M. Savard (eds.) Ancient Plants and People: Contemporary Trends in Archaeobotany. Tucson: University of Arizona Press
  • Hastorf, C. (1999) 'Recent research in palaeoethnobotany'. Journal of Archaeological Research. 7 (1). 55-103
  • Hillman, G. (1981) 'Reconstructing Crop Husbandry Practices from Charred Remains of Crops', in R. Mercer (ed.) Farming Practices in Prehistory. Edinburgh: Edinburgh University Press
  • Hillman, G. (1991) 'Phytosociology and Ancient Weeds Floras: Taking Account of Taphonomy and Changes in Cultivation Methods', in D.R. Harris and K.D. Thomas (eds.) Modelling Ecological Change. London: Institute of Archaeology
  • Hubbard, R.N.L.B. and Clapham, A. (1992) 'Quantifying macroscopic plant remains'. Review of Palaeobotany and Palynology. 73 (1-4). 117-132
  • Jacomet, S. (2006) Identification of Cereal Remains from Archaeological Sites (2nd Ed.). Basel: Institute for Prehistory and Archaeological Science
  • Jones. G. (1987a) 'Agricultural practice in Greek prehistory'. The Annual of the British School at Athens. 82. 115-123
  • Jones, G. (1987b) 'A statistical approach to the archaeological identification of crop-processing'. Journal of Archaeological Science. 14 (3). 311-323
  • Knörzer, K.-H. (1971) 'Urgeschichtliche unkräuter im Rheinland: Ein beitrag zur entstehunggeschichte der segetalgesellschaften'. Vegetatio. 23 (3-4). 89-111
  • Küster, H. (1991) 'Phytosociology and Archaeobotany', in D.R. Harris and K.D. Thomas (eds.) Modelling Ecological Change. London: Institute of Archaeology
  • Matthews, W. (2009) 'Geoarchaeology and taphonomy of plant remains and microarchaeological residues in early urban environments in the Ancient Near East'. Quaternary International. 214 (1-2). 1-16
  • McCorriston, J. (1995) 'Preliminary archaeobotanical analysis in the Middle Habur Valley, Syria and studies of socioeconomic change in the early third millennium BC'. Bulletin of the Canadian Society for Mesopotamian Studies. 29. 33-46
  • Miller Rosen, A. (1997) 'The Agricultural Base of Urbanism in the Early Bronze Age II-III Levant', in W.E. Aufrecht, N.A. Mirau and S.W. Gauley (eds). Aspects of Urbanism in Antiquity: From Mesopotamia to Crete. Sheffield: Sheffield Academic Press
  • Miller, N.F. (1984) 'The use of dung as fuel: An ethnographic model and an archaeological example'. Paléorient. 10 (2). 71-79
  • Miller, N.F. (1990) 'Clearing Land for Farmland and Fuel: Archaeobotanical Studies of the Ancient Near East', in N.F. Miller (ed.) Economy and Settlement in the Near East: Analyses of Ancient Sites and Materials. MACSA Research Papers in Science and Archaeology. 71-78
  • Moffet, L. (2009) 'The Archaeology of Medieval Plant Foods', in C.M. Woolgar, D. Serjeantson and T. Waldron (eds.) Food in Medieval England: Diet and Nutrition. Oxford: Oxford University Press. 41-55
  • Monk, M., Collins, T., Johnston, P., McCarthy, M., Reilly, E. and Stuijts, I. (2007) Environmental Sampling: Guidelines for Archaeologists. Dublin: Institute of Archaeologists of Ireland
  • Reddy, S.N. (1994) Plant Usage and Subsistence Modelling: An Ethnoarchaeological Approach to the Late Harappan of Northwest India. Unpublished PhD thesis. Ann Arbor: University of Wisconsin
  • Riehl, S., Bryson, R. and Pustovoytov, K. (2008) 'Changing growing conditions for crops during the Near Eastern Bronze Age (3,000-1,200 BC): The stable carbon isotope evidence'. Journal of Archaeological Science. 35 (4). 1,011-1,022
  • Schiffer, M.B. (1976) Behavioural Archeology. New York: Academic Press
  • Stace, C. (1997) New Flora of the British Isles (2nd Ed.). Cambridge: Cambridge University Press
  • Stevens, C.J. (2003) 'An investigation of agricultural consumption and production models for prehistoric and Roman Britain'. Environmental Archaeology. 8 (1). 61-76
  • Valamoti, S.-M. (2003) 'Neolithic and Early Bronze Age ‘Food’ from Northern Greece: The Archaeobotanical Evidence', in M. Parker Pearson (ed.) Food, Culture and Identity in the Neolithic and Early Bronze Age. British Archaeological Reports International Series. 1117. Oxford: Archaeopress. 97-112
  • van der Veen, M. (1992) 'Crop Husbandry Regimes: An Archaeobotanical Study of Farming in Northern England 1,000 BC - AD 500. Sheffield Archaeological Monographs. 3. Sheffield: J.R. Collis
  • van der Veen, M. (2007) 'Formation processes of desiccated and carbonized plant remains: The identification of routine practice'. Journal of Archaeological Science. 34 (6). 968-990
  • van der Veen, M. and Jones, G. (2006) 'A re-analysis of agricultural production and consumption: Implications for understanding the British Iron Age'. Vegetation History and Archaeobotany. 15. 217-228
  • van Zeist, W. and Bakker-Heeres, J.A.H. (1985) 'Archaeobotanical studies in the Levant. 4. Bronze Age sites on the North Syrian Euphrates'. Paleohistoria. 27. 247-316
  • Weiss, H., Courty, M.A., Wetterstrom, W., Guichard, F., Senior, L., Meadow, R. and Curnow, A. (1993) 'The genesis and collapse of third millennium North Mesopotamian civilization'. Science. 261 (5124). 995-1,004
  • Wilkinson, K. and Steven, C. (2008) Environmental Archaeology: Approaches, Techniques and Applications. Stroud: Tempus
